Uav Product

APM FDG815

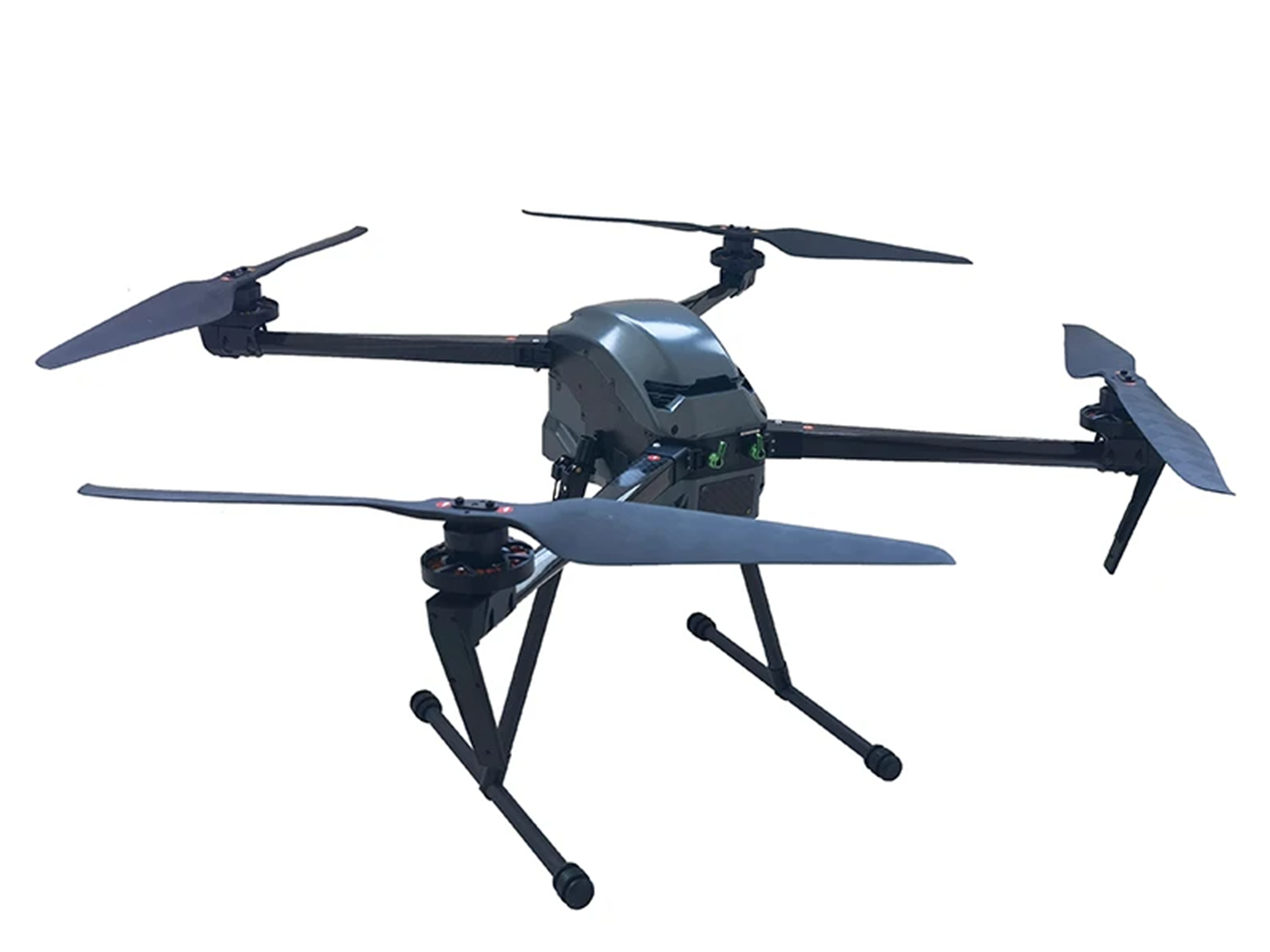

Quadcopter drone
***REQUEST PRICING***
  • FDG815 Quadcopter drone is a small size aerial platform for mapping, surveillance and inspection. Featuring 90 minutes of flight time, IP66 rating folding frame, and multiple failsafe, Its compact folding airframe enables easy operation and flexible maneuvering.
  • Under circumstances when Drone is in low voltage status or loss of signal, Return to launch failsafe will be automatically triggered to save the drone.
  • Plan the flight path that can be saved for future mission on either Herelink 5.5″ inch touch screen or on MissionPlanner/PC after linking herelink with PC through WiFi / Bluetooth/USB, drone flying becomes programmable and as simple as anyone can master. Alternatively, Herelink also serves as a streaming media server that delivers video and data (WAN) among team members on their devices like an ipad, mobile phone or PC, allowing a simultaneous team participation in the mission.
  • Specification Version : Quadcopter Battery-powered Version Color: Black and White Material: Carbon Fiber, CNC, PCB
  • Control Range : 20km
  • Diagonal Wheelbase : 815mm
  • Unfolded Dimensions : : 670mm*650mm*200mm (excluding propellers/landing gears)
  • Folded Dimensions : 440mm*210mm*200mm(excluding propellers/landing gears)
  • Empty Weight : 5.4kg (including battery)
  • Battery Weight : 2.8kg
  • Max Take-off Weight : 8kg
  • Flight Time : 90min (no payload) 68min (800g payload) 45min (2500g payload)
  • Max Speed : 30m/s Max Lifting Speed: 4m/s
  • Max Descent Speed : 3m/s
  • Max Angle of Pitch : 25°
  • Wind Resistance : 14m/s
  • Service Ceiling : 6000m
  • Propeller : 22*8 inch
  • Working Voltage : 50.4V
  • Working Temperature : -10℃-55℃
  • Carrying Case : 68cm*45cm*35cm
